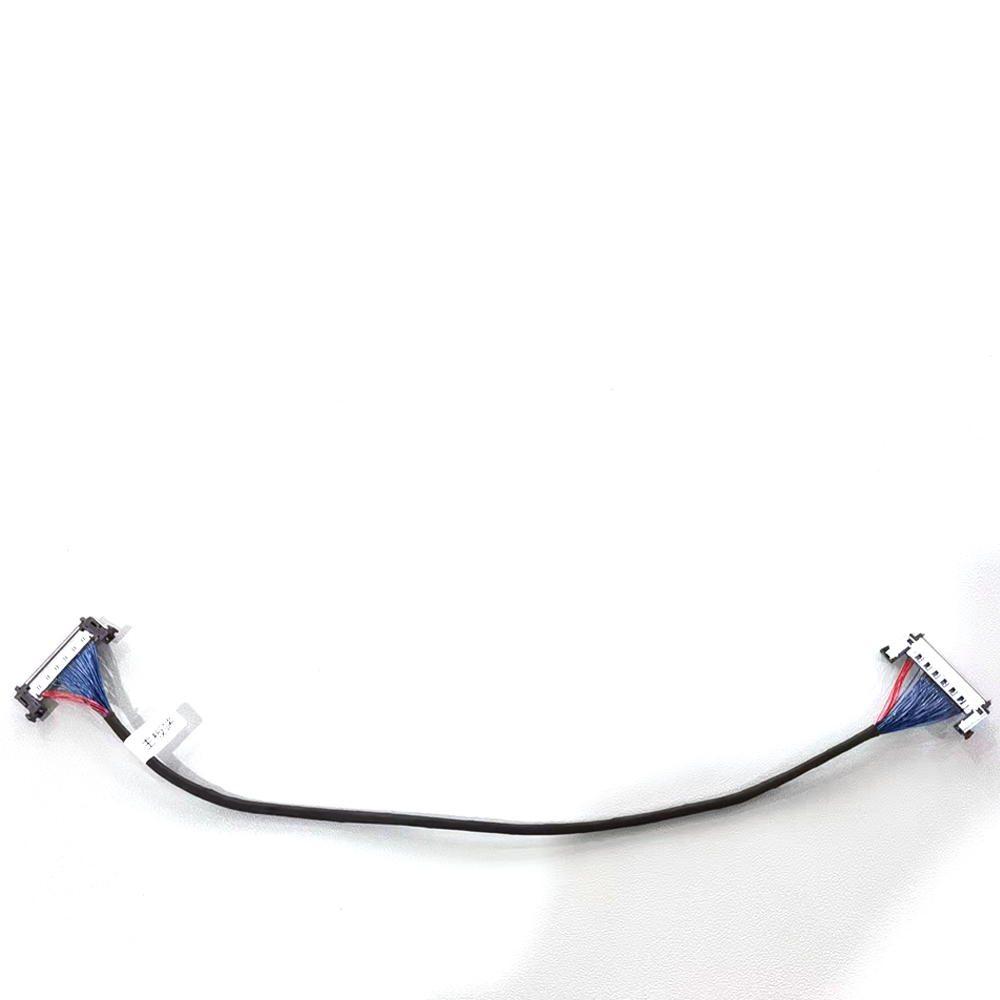

model numarası.: FI-RE51CL-320-51P
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Item | Description |
| Specification | UL1354 #36, #40 FI-RE51CL L=320mm |
| Net Weight per Unit (g) | 8.92g ±5% |
| Application | Coaxial Cable |
| RoHS Compliant | Yes |
| Vacuum Packaged | Yes |
| Packaging Suitable for Overseas Shipment | Yes |
| Carton Stacking Height | 2.2m ≤ H ≤ 2.5m |
| Storage Condition & Shelf Life | 1 year; Temperature: 10℃~32℃; Relative Humidity: <85% |
| Certified Model | Certification Body | Certification Standard | Certificate No. | Effective Date | Expiry Date |
| 1354 | UL | UL758 | E358407 | 2023/5/29 | Continuously Valid |
| No. | Requirement Description |
| 1 | All dimensions must conform to the drawing |
| 2 | Characteristic impedance: 100Ω ±10% |
| 3 | Eye diagram ≥ 0.80ps |
| 4 | Terminals must not be oxidized. Crimping must be good without glue wrapping, necking, twisting, or deformation. Terminals must be fully inserted. Misalignment or incomplete insertion is strictly prohibited |
| 5 | Product appearance must be good. The insulation sheath must be clean and free of discoloration |
| 6 | This product is environmentally friendly and complies with RoHS standards |
